Cut & cap assembly machines for hollow fiber filter modules

Cut & cap assembly

In the alphaCUT®, the filter cartridge is cut to the final size.
After removing the potting caps, the previously sealed and potted hollow fiber membranes are opened by several cutting processes.

After cutting, the cut surfaces are subjected to a visual inspection. If required, an automatic camera-based cut surface inspection or the automated measurement of other relevant process parameters can also be integrated.

Depending on the equipment of the production line, the visual inspection is followed by the assembly and screwing of the sealing caps, which complete the product. Finally, the dry weight of the products is determined in the alphaCUT® before the upcoming wet density test (alphaFLOW®).

BASIC
PRO
Automatic cutting in up to 5 cuts
Visual cut surface inspection
Automatic weighing
BDE system
Automatic cutting surface control
Automatic O-ring assembly
Automatic blood cap assembly

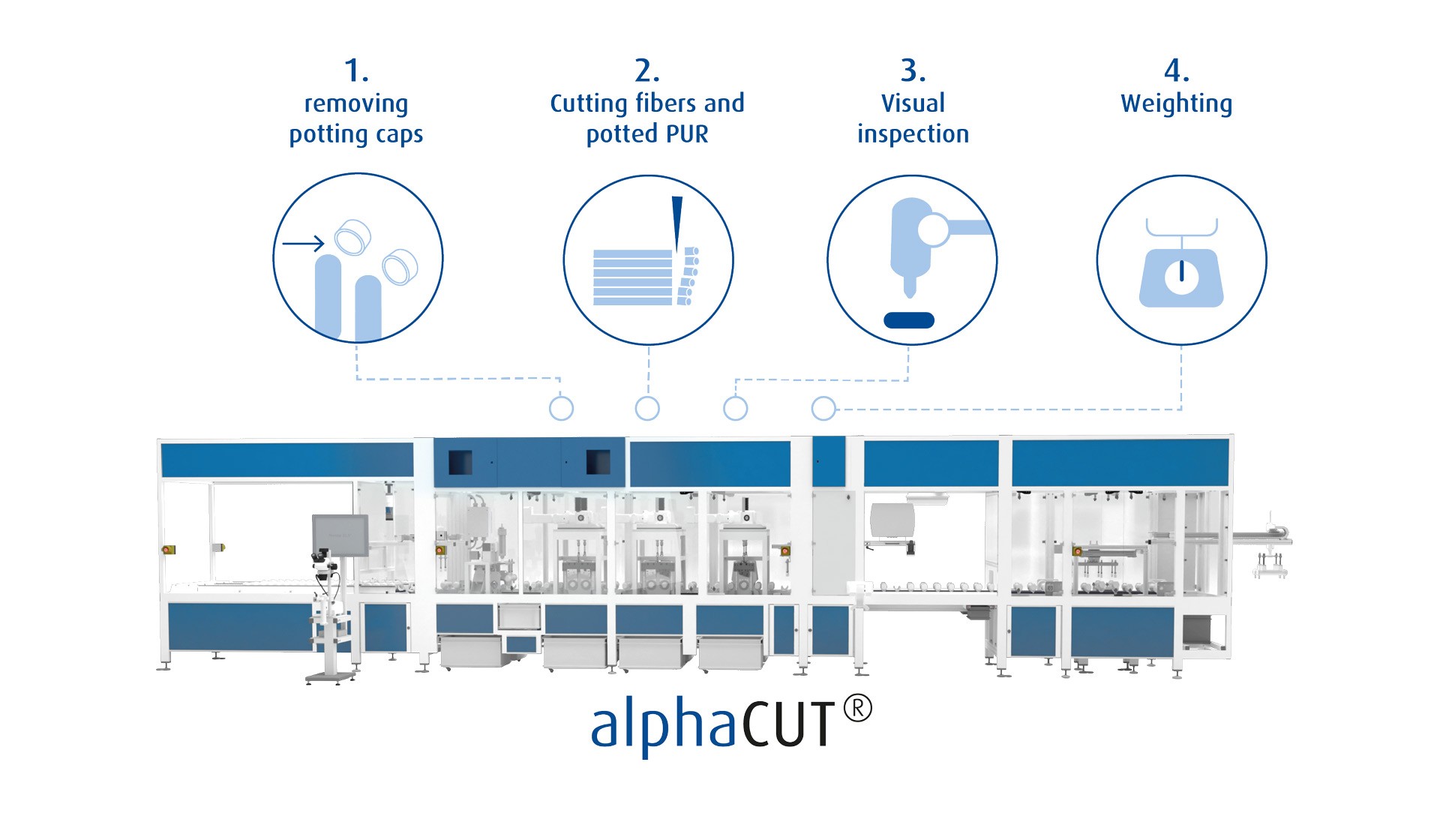

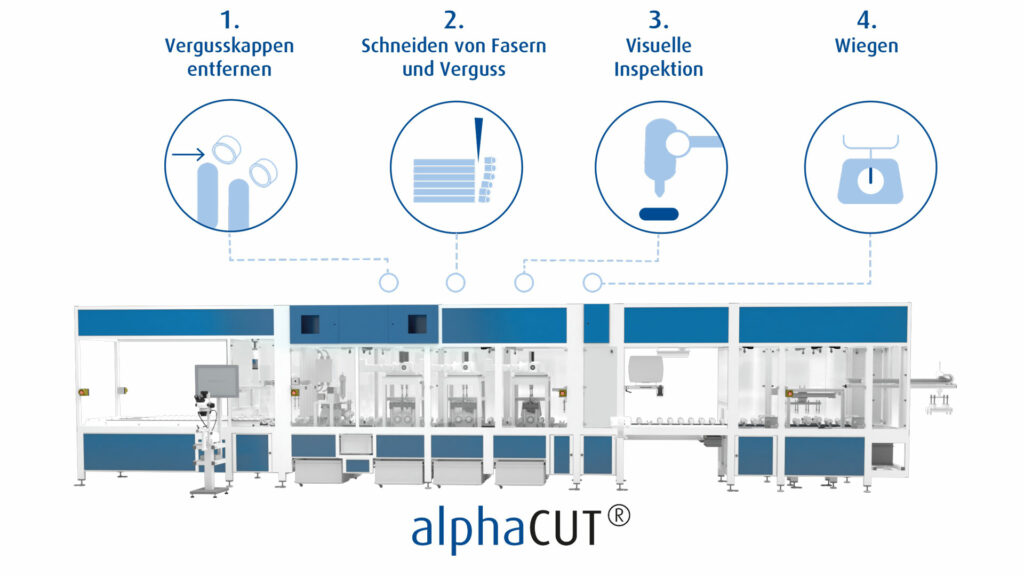

Technology processes

  • Remove potting caps
  • Cutting the fiber ends
  • Visual inspection
  • Cap assembly
  • Integrity test
  • Weighing

alphaCUT® - in use. Find out more in the video!

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

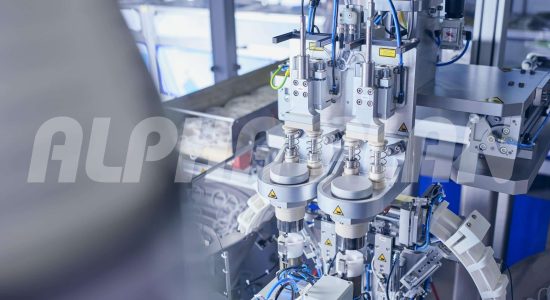

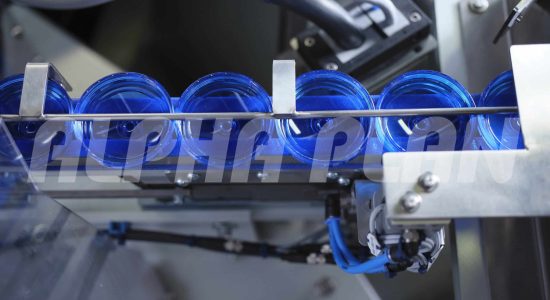

Impressions of the alphaCUT®
